Stabilised / Remote Heads

Scorpio Stabilised 5-Axis Head

TECHNICAL SPECIFICATIONS

Speed: 120º/Second all axis

PAN y TILT 360ª

Rotation: ROLL +/- 30ª

Back Pan: Automatic

Head Weight: 33kg / 72 lbs

Max camera weight: 45kg / 100lbs

Power requirements: 30V DC

Stand By Current: 800 mA

Maximum Current: 8A

Maximum usable lens focal: 300 mm

Set-Up Time: The same as a standard Scorpio Head

The Scorpio Stabilized Head can be controlled two ways:

  • By cable up to 500 m (1500 f)
  • By microwave Scorpio Radio System.

Mini Scorpio Stabilised V Head

The Mini Scorpio Stabilized Head V represents a new standard in small stabilized heads. Building on the principles of the original Scorpio Stabilized V, this latest model features innovative gyros, advanced mechanics, and cutting-edge software. These enhancements enable the Mini Scorpio to be both compact and lightweight while maintaining a high capacity and exceptional stabilization performance. It's an ideal solution for filmmakers seeking advanced stabilization in a smaller form factor, ensuring smooth and professional results in their projects.

TECHNICAL SPECIFICATIONS

Turn speed: 360º/2 seconds PAN 360º / TILT 360º

Axis movement: ROLL +/- 60º

Head weight: 20kg / 45 lbs

Max. Payload: 20kg / 45 lbs

Voltage requirements: 30V DC

Standby consumption: 800 mA

Max. usable focal lens: 200 mm

Setup time: Same as Standard Scorpio Stab Head

Water resistant

The Scorpio Head can be controlled by:

  • Cable up to 500 m (1500pies)

  • Radio using the Scorpio Radio system.

Flight Head Mini 3 + 4

SPECIFICATIONS

Height: 0.64cm

Width: 0.49cm

Length: 0.68cm

Tilt / Pan / Roll: 200º / 360º / 270º

Payload: up to 15kg

Weight: 11kg

DOWNLOADS

> Compatible cameras & lenses
> Dimensions
> Flight Head Mini 3 and 4 Drawings
> Flight Head Mini 3 and 4 Specs

Flight Head Apex Stabilised Head

FLIGHT HEAD APEX
Three axis Flight Head Apex engineered for superior filming performance and is one of the most compact, highly versatile and effective stabilized remote heads on the market. Apex offers smooth and responsive control eliminating camera shakes and vibration during fast and rough moves. Its open architecture and user friendly design make it the remote head of choice for a wide range of tracking shots. Works on all types of camera cranes, arms, dollies, high speed tracking systems, camera cars, cablecams, etc.

SPECS:
Effective stabilization throughout 250mm focal length
Pan limit: 360° continuous
Tilt limit: +60°; -240°
Roll limit: ±42°, auto horizon or steerable
Speed: 120°/ sec
Temperature range: from -25°C up to +40°C
Head weight: 33 kg
Payload: up to 40 kg

POWER REQUIREMENTS:
24-30V DC
Standby: 1.2A
Dynamic Max.: 15A

Motocrane Titan LT

***Two in Stock***

Providing next-level stabilisation, the LT runs on the latest Gen3 Titan Sensor Fusion with GPS for precision stabilisation in the most turbulent environments. Perfect for all remote head supports like MotoCrane arms, Black arms, Cable cams, Technocranes, Dollies/jibs, RC cars and even Handheld. The choice is yours!

LT Technical Specifications


Mechanical
Construction: 6061-T6 Aluminum chassis
Maximum operational speed: 130+mph
Max Pan motor torque: 10Nm
Max Pan speed: 360º/sec
Maximum Payload Capacity: 40lbs/18kg
Dry Weight: 18lbs/8.2kg
Weather rating: IP65 (water resistant)
Temperature rating: -30ºF - 120ºF
Gimbal Mounting: Mitchell mount adapter, LT Quick Disconnect
Payload mounting: DJI R2 Dovetail/Baseplate
Camera build volume: 270mm (L) x 225mm (W) x 236mm* (H)
*286mm height with 50mm Cage Extension accessory

Electrical
System Voltage: 48V (42-52VDC)
Comms: CAN-BUS, hardwired + 2.4Ghz wireless
Power output: 3x 14.4V 2-Pin LEMO (125W) + 1x 26V (125W), 250W combined
Lens Driver: 3-channel, digital 7-pin LEMO

Talon Remote Head

***4 in Stock***

The talon head is a extremely stable and dynamic two axis non-stabilized remote head with true motion control capability and parameters. Utilizing powerful but quiet drivetrains and full slip rings, the Talon head is capable of very smooth and precise tracking movement.

The Talon Head is extremely reliable, easy to operate, and capable of imperceptibly slow or extremely fast moves with the hand wheels and for broadcast environments the talon head has a joystick, and focus and zoom capabilities.

Features
• Joystick control for Pan/Tilt/Zoom, separate Knob for Focus
• Record and move to up to 2000 marked positions
• Record and playback 1 hour and up to 2000 takes
• Share recorded data w/ laptop: upload/download
• Programmable max. speeds for individual motors
• Programmable smoothing controls for each motor
• Precise homing control via pushbutton commands
• 2500′ max std extension, longer w/ fiber optic option
• Wireless Option available
• Programmable motion limits for both pan & tilt
• Servo tuning available at Full Function Remote
• Fuji/Canon/Preston serial & analog lens control
• Zoom Compensation for smooth moves at telephoto
• Camera sync. feature for frame-accurate shots
• Advanced Intervalometer provides 3 modes for stretching moves in time
• Extremely rigid for smooth motion @ telephoto
• Full slip rings for continuous 360 degree motion

The Advanced Controller, aka 'Full Function Remote,' is the brains of the system that contains all the parametric motion control and recording capabilities, as well as an LCD readout, connector panel, pan/tilt joystick, and zoom/focus controls. The Advanced Controller can be used stand-alone for desktop/tripod operations or paired with optional Control Input Units such as the hand wheels or pan bars.

SPECS:
Weight: 90 lbs
Dimensions: 33 x 21 x 16 in
UPC: 877038008014
Height: 19.5″
Width: 12″
Depth: 6″
Weight: 21 lbs
Camera weight: 50lbs

Camera clearance:
Vertical – Camera pointing straight down/up: 11″ from center of cam plate to base.
Horizontal – Camera pointing level horizon underslung: 15.5″ min / 17.5″ max.
With 2″ head extension: Vertical 13″, Horizontal 17.5″ min / 19.5″ max.
With 5″ head extension: Vertical 16″, Horizontal 20.5″ min / 22.5″ max

Pan/Tilt speed: Up to 210 degrees/second
Mechanical travel: Unlimited rotation for each axis
Power Requirements: 24VDC regulated, 10A max, absolute min/max 20VDC-30VDC

DEFY EX 350 Stabilised Head

***3 in Stock***

Find our more about our DEFY EX 250 Stabliized Head here.

Mo-Sys L40

***Two in Stock***

Our precise, robust and lightweight 2-axis head for high-end digital cinematography is ideal for medium-sized camera packages, for example, ARRI Alexa with a large zoom lens.

We also have the 360' Roll Axis and Handwheel System.

Find out more about the Mo-Sys L40 here. Find out more about the Roll Axis here.

Ronin 2

***11 in Stock***

Versatility

A newly designed detachable grip allows the Ronin 2 to stand up on its own and is easily separated when the lower part of the handgrip is not needed. Ronin 2 is also highly compatible with cranes, dollies and cablecams.

Integrated

Power systems are now tightly integrated into Ronin 2, capable of powering its motors and the attached camera and accessories without dangling cables or multiple power systems. As it uses a dual battery system, filmmakers can hot swap to keep the camera and accessories powered and maximize shooting time.

Easy

The simplicity of Ronin has been amplified with Ronin 2, making setup and use easier than ever. Everything, from mounting cameras to balancing and tuning, powering accessories and transportation has been tweaked and refined for ease and speed.

Find out more about the Ronin 2 here.

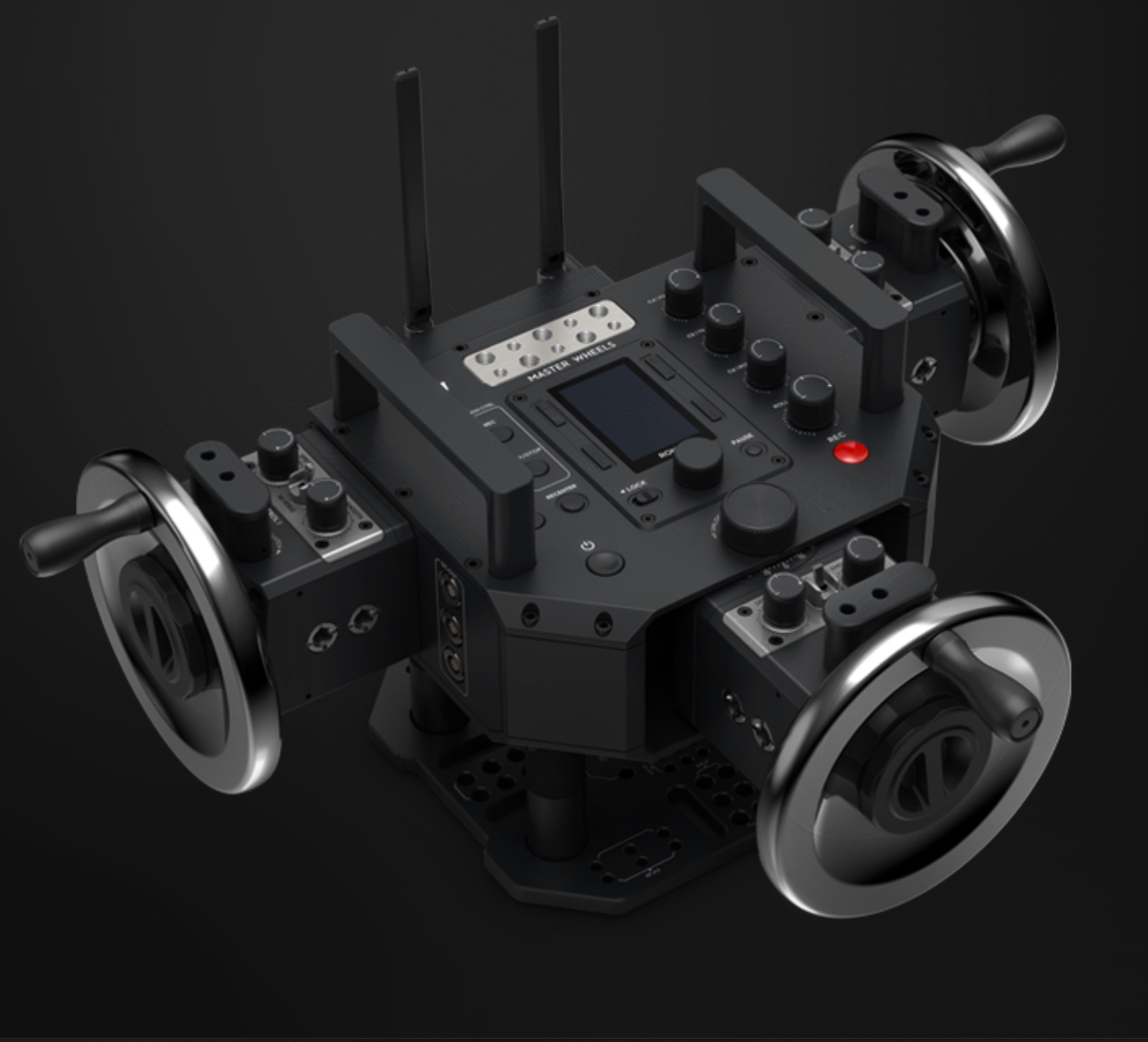

DJI MASTER WHEELS

For use with the Ronin 2

The Master Wheels controller is an advanced professional wheel controller system that employs high-precision sensors, advanced control algorithms,and state-of-the-art product design to deliver precise and butter-smooth remote camera movement control.

Spec:

Voltage: 22.8 V
Battery: 4280 mAh/97.58Wh
Operating Temperature: -20° to 50℃（-4° to 122℉）
Charging Temperature: 5° to 45℃（41° to 113℉）
Battery Life: 18 hours
Charging Time: 1.5 hours
DC IN: 12 V - 27 V
DC OUT: 14.4 V / 8A Max

NODO INERTIA WHEELS MAX

For use with the Ronin 2

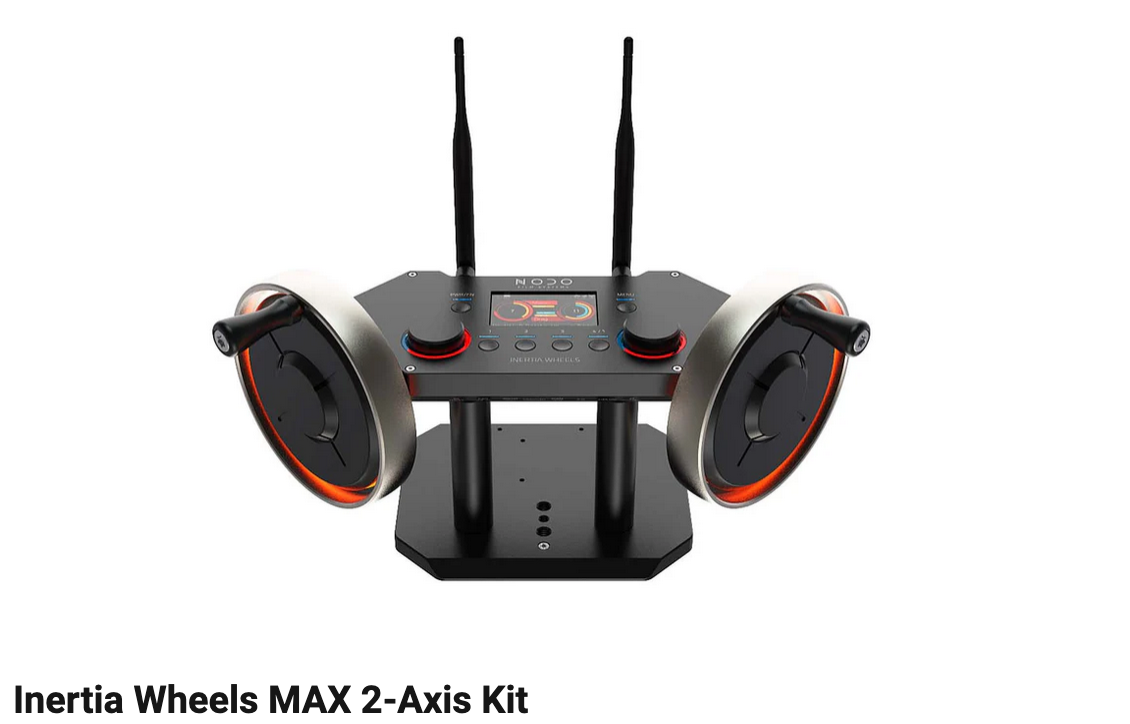

Inertia Whels MAX 2-Axis Kit

The NODO Inertia Wheels MAX 2-Axis is a wireless long-range digital camera controller featuring proprietary, patented MAX Inertia Motors™ inside the wheels. Operators can use both mass and drag to help both creatively and technically to achieve difficult and creative shots. The Inertia Wheels are compatible with Freefly MōVI, DJI Ronin, and more gimbals. The controller has dual-band, long-range 400-950MHz+2.4GHz wireless communication beyond 1 mile with a fast refresh rate of 100Hz. Optional hardwire connection of up to 2000ft.

Cross-Platform Compatibility

Inertia Wheels MAX and Brushless support:

  • DJI Ronin (1, 2, M, MX, RS, RS2)
  • Freefly MōVI (Pro, XL)
  • Arri Trinity 1 / Maxima*
  • eMotimo ST4
  • Inspire 2*
  • Shotover*
  • Newton Nordic*
  • Kessler Cineshooter*
  • Talon Head*
  • Defy EX Camera*
  • Filmotechnic Heads*
  • Virtual Production: Cinetracer, Unreal Engine, Cinema4D
  • NODO Training Software

* Requires additional hardware for support.

Inertia Wheels MAX 3-Axis Pro Kit

The Inertia Wheels MAX Motors have 3x the torque, 6x the current, and 4x the encoder resolution of the Inertia Wheels Brushless. The MAX motors enable operators to make the wheels feel even heavier by adjusting the Mass setting. The feeling of weight in the wheels also physically stabilizes the wheel and therefore the image—all without adding latency to operating experience. For premiere operators, there are no other wheels that offers more flexibility and control.

Specifications

Compatible with:

  • Freefly: MōVI Pro, MōVI XL
  • DJI: Ronin 2, Ronin 1, Ronin MX, Ronin M, Ronin S
  • eMotimo: ST4(More info)
  • More coming...

Input/Output:

  • Power: 10-35v DC Lemo Port
  • Data: 2x UART Lemo Ports
  • Hardwire: 4-Pin Molex
  • Micro USB 2.0

Wireless:

  • Range: 1 Mile
  • Uplink: 400-500 and 800-1000 MHz
  • Downlink: 2.4 GHz

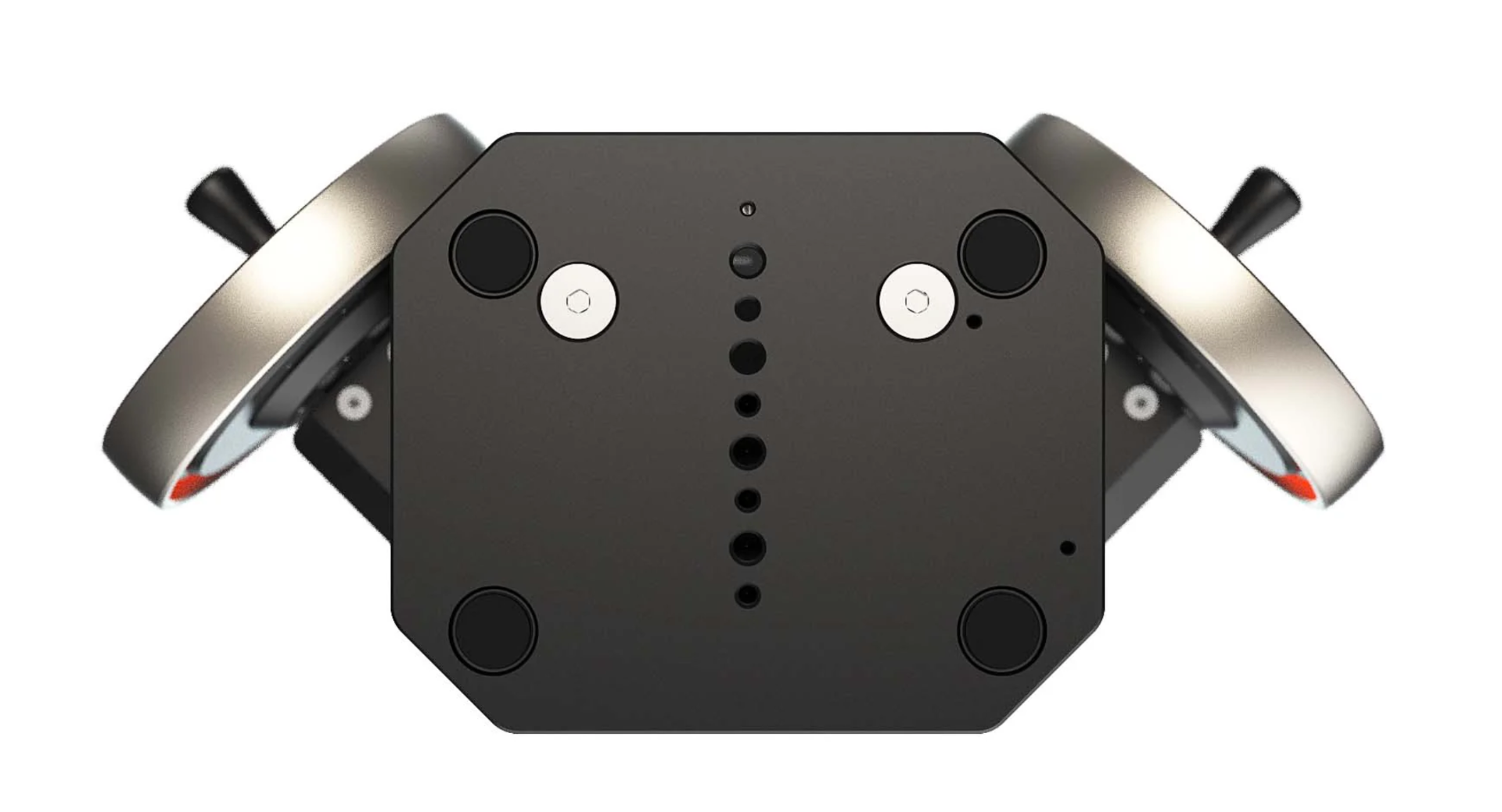

Physical:

  • Weight: 12lbsBattery
  • Battery Mounting Patterns: Gold Plate + V-Lock + Ignite Digi TB50
  • Base Holes: 4x 3/8-16 & 4x 1/4-20
  • 4x Rubber Feet
  • 3x Mitchell Mount Key Way Holes at 0°, 45° and 90°


Maxima Gimbal

The MAXIMA is a three-axis, electronically fully stabilized, high-performance gimbal. Its compact, lightweight design and perfect center of gravity provide new levels of freedom, while its stable construction allows for compatibility with any camera system weighing 30 kg / 66 lb or less. Cameras like the ALEXA 35, Mini LF, and Mini; AMIRA; ARRICAM LT; ARRIFLEX 235 and 416; any TV Box Camera; or cameras with similar dimensions to these, can be used with the MAXIMA. Using the new SAM plates ensures fast setup times and perfect COG (centre of gravity) of the camera.

At the centre of the unique design is an extremely durable ball bearing roll cage, as well as specially designed brushless high-torque motors. Together they deliver smooth, dynamic camera moves and plenty of power in reserve, no matter how demanding the application.
